Zhuzhou Up Cemented Carbide Co.,Ltd

Products > hard-face material > tungsten carbide copper welding rod > 6% Co Hardness 92hra Od350*ID80*3.0mm Tungsten Carbide Circular Cutters
Product name : 6% Co Hardness 92hra Od350*ID80*3.0mm Tungsten Carbide Circular Cutters
Product No. : OD350*ID80*3.0mm
             [Next Product]→
Online Inquiry         Email Us

  Details:

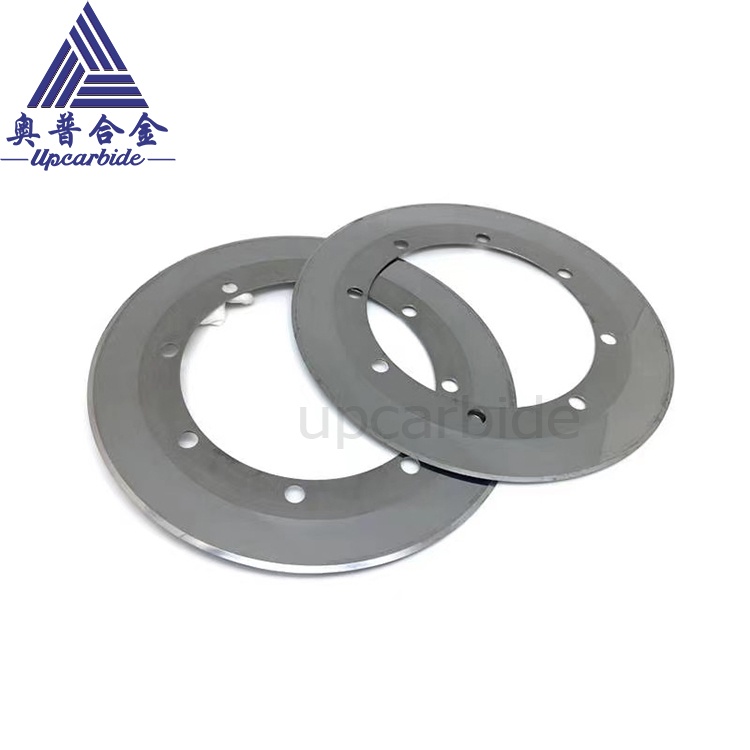

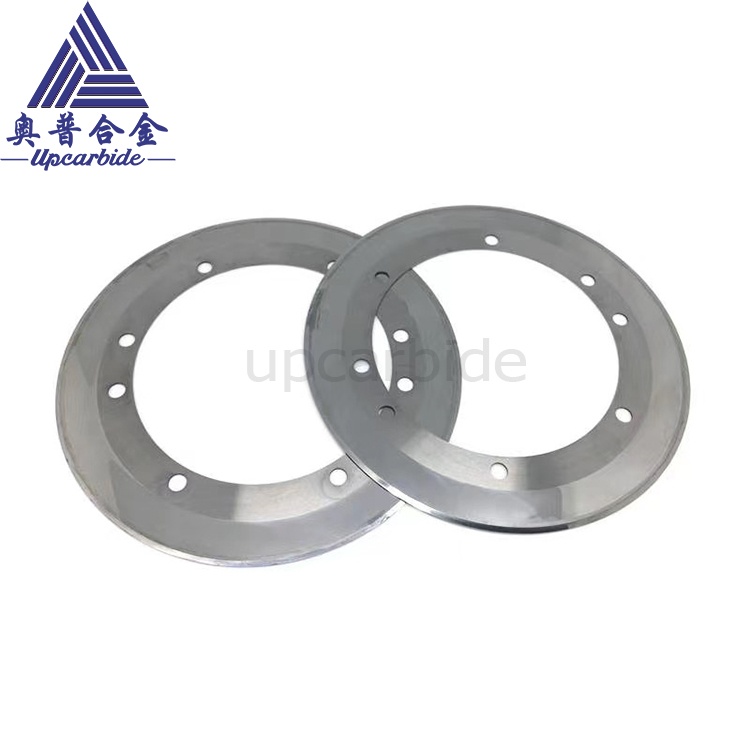

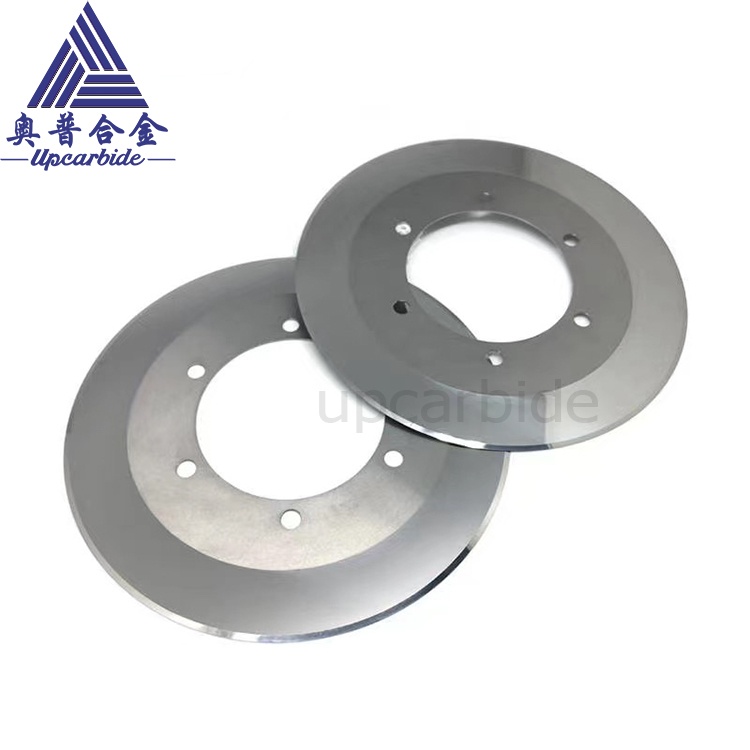

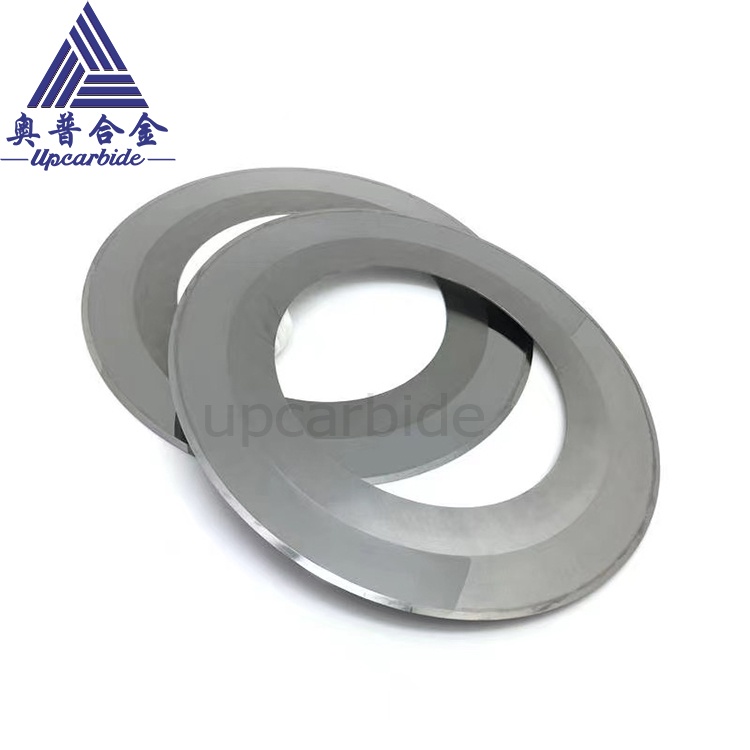

6% Co Hardness 92hra Od350*ID80*3.0mm Tungsten Carbide Circular Cutters
6% Co Hardness 92hra Od350*ID80*3.0mm Tungsten Carbide Circular Cutters



tungsten carbide disc cutter
usually is machined into all kinds cutter with tooth,tungsten carbide
lead wire cutter
with excellent hardness and abrasive resistance .



1.   the thickness can reach 0.5mm for unground disc cutter.

2.   Sintere by vacuum sintering furnace and HIP machine with excellent specifications without any hole.

3.   can suply unground cutter or process according drawing,such as grinding face,outdiameter,inner-
hole,punching,making slotting,blade or teeth ect.

4.   Suitable for machining hardened steel, alloy steel, cast iron, non-ferrous metal, stainless steel, high
manganese steel, plywood, PCB, PVC, electronic
board.


Grade specifications
Grade Density  g/cm3 T.R.S  Mpa   Hardness   HRA Performance & application recommended ISO code
YG6X 14.9 1850 92 Fine grain alloy, good wear resistance. Semifinishing of chilled cast iron, non-ferrors metals alloys, semi-finishing and finishing of hardened steel, alloy steel. K10
YG6 14.9 2450 90.5 High wear resistance, bending strength, suitable for electronic industry with the disc cutting knife. K10
YG8 14.8 2450 90.5 High strength ,impact and shock resistance higher than YG6X,,but wear resistance and cutting speed comparatively lower.Roughing of cast irons,non-ferrors metals and their alloys as well as non metallic materials at low cutting speed K20
YG10X 14.7 2320 89.5 High strength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast irons, non-ferrors metals and their alloys as well as K40
YS2T 14.5 2200 91 Fine grain alloy, good wear resistance. Used for processing hard wood,veneer board,PCB,PVC and metals. M10



Sizes choosing:
TYPE OD(mm) ID   (mm) S   (mm)   TYPE OD(mm) ID   (mm) S   (mm)
Φ12×Φ6×S 12 6 0.6-4.5   Φ60×Φ19×S 60 19 0.8-7.0
Φ13×Φ6×S 13 6 0.6-4.5   Φ63×Φ17×S 63 17 0.8-7.0
Φ16×Φ6×S 16 6 0.6-4.5   Φ70×Φ22×S 70 22 0.8-7.0
Φ22×Φ10×S 22 10 0.6-4.5   Φ75×Φ22×S 75 22 0.8-7.0
Φ25×Φ12×S 25 12 0.6-5.5   Φ80×Φ22×S 80 22 0.8-7.0
Φ32×Φ10×S 32 10 0.8-5.5   Φ83×Φ21×S 83 21 0.8-7.0
Φ40×Φ10×S 40 10 0.8-6.0   Φ86.5×Φ21.5×S 86.5 21.5 1.0-7.0
Φ45×Φ13×S 45 13 0.8-6.0   Φ90×Φ22×S 90 22 1.0-7.0
Φ53×Φ13×S 53 13 0.8-6.0   Φ100×Φ22×S 100 22 1.0-7.0
Φ52×Φ24.5×S 52 24.5 0.8-6.0   Φ125×Φ22×S 125 22 1.0-7.0
Φ53×Φ24.5×S 53 24.5 0.8-6.0   Φ200×Φ70×S 200 70 3.0-4.5
Φ55×Φ16×S 55 16 0.8-6.0   Φ250×Φ70×S 250 70 3.0-4.5
Φ58×Φ22×S 58 22 0.8-6.0   Φ310~350×Φ208×S 310~350 80~208 2.0-7.0
