Zhuzhou Up Cemented Carbide Co.,Ltd

Product name : carbide round insert R6
Product No. : RCKT1204MO
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
carbide round insert can been transfer using polygon blade with mechanical method

between solid in rod or blade on the cutter
1.the common shapes of inserts:the trilateral, quadrilateral, pentagon, convex trilateral, circular and diamond ect
2
.Inscribed circle diameter of the insert profile is the basic parameters of the blade,the sizes are 5.56、6.35、9.52、
   12.70、15.88、19.05、25.4 …mm.

3.the common grade of tolerance have three kinds,such as  the G、M
U.can choose according the usage.

4.Various shapes of the blade has a center with hole or without hole;Have not bring the Angle or with different Angle;
    Have not bring of chip breaker groove, too o
ne side or two sides of chip breaker groove.

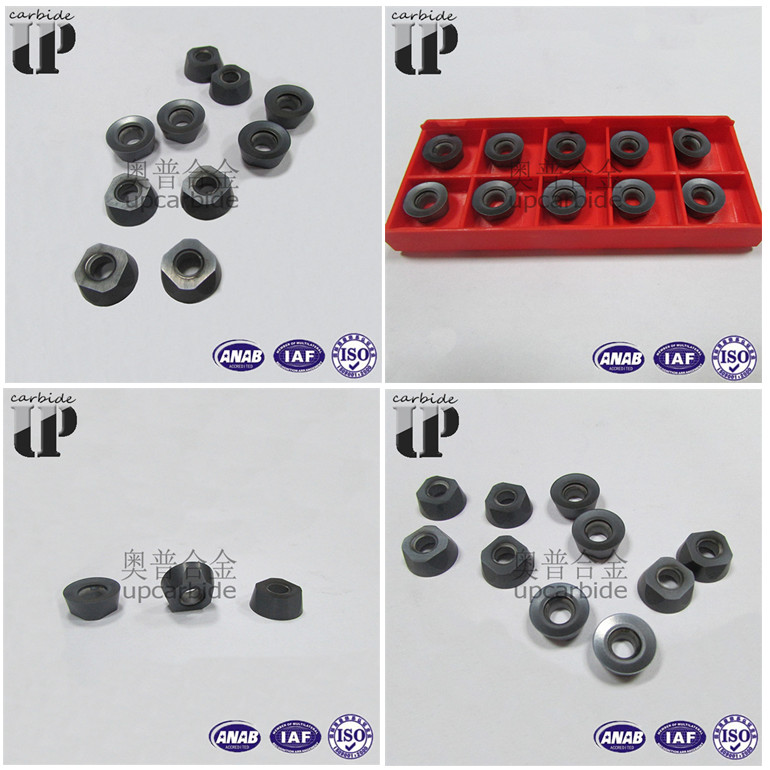

carbide round insert'S photos

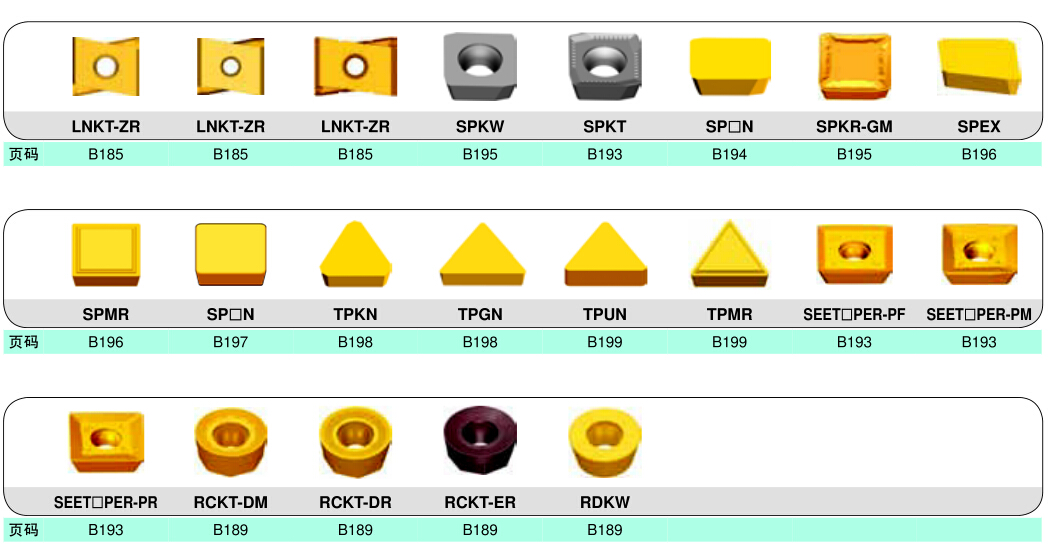

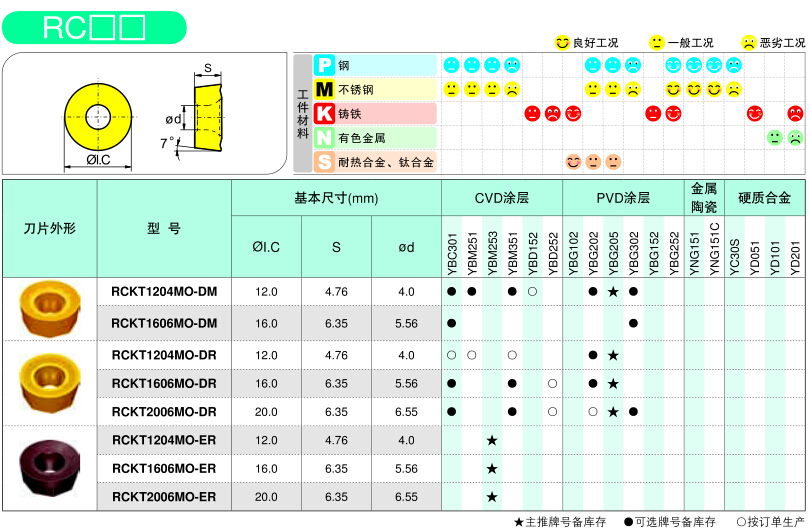

carbide round insert's Type and sizes





carbide round insert's grades and usage:

YBC151
High wear resistance insert with coating,such as MT-TICN、thick AL2O3 and TIN;Suitable for steel finishing.

YBC251
Blade security good toughness matrix in MT - TICN, thick AL2O3, excellent combination of TIN coating;Is suitable
for semi-finishing steel.

YBC351
In the high strength plastic substrate resistance and MT - TICN, thick AL2O3, TIN coating combination;Has good
toughness and plasticity deformation, suitable for steel
The rough machining.
YBD151
High wear resistance matrix and MT - TI (CN), thick excellent combination, AL2O3, and TIN coating is suitable for
finishing and semi-finishing of cast iron materials.

YBM151
Special organization structure matrix combined with thin TICN, AL2O3, TIN coating, has a good impact resistance
and resistance to plastic deformation ability, at the same time
Good shock resistance, suitable for the finishing,
semi-finishing and roughing of stainless steel.

YBM251
TICN substrate from good toughness and strength, thin, AL2O3, and TIN coating is suitable for semi-finishing and
roughing of stainless steel.

YBM253
Stainless steel efficient processing CVD new brands, which are widely used in big cut deep into to efficient processing
field.
To adopt advanced technology of ultrafine grain nanostructured coating,Gradient alloy substrate with high toughness,
excellent performance, in the big cutting depth, feed, high speed cutting process has excellent cutting performance.

YBC152
Thick thick TICN and AL2O3 coating, the impact toughness increase at the same time, the wear resistance has increased
significantly, is processed to semi-finishing steel high-speed cutting
The ideal choice of the cutting.Cutting speed can be
increased by more than 25%, under the same cutting speed and tool life can be improved by more than 30%.

YBC252
Adopts thick TICN and AL2O3 coating thick, strong ability to resist plastic deformation and the blade intensity, is closed
from finishing to rough machining of steel
Choose brand.Under the high removal rate cutting parameters or harsh working
conditions has stable performance, and can achieve more green dry cutting.
cut Cutting speed can be increased by more
than 25%, under the same cutting speed and tool life can be improved by more than 30%.



carbide round insert's advantages
Indexable tool with brazing and other mechanical clamp solid compared to the cutting tool has the following advantages:
(1) to avoid the hard alloy brazing prone to crack faults;
(2) indexable insert suitable for gas phase deposition on cemented carbide blade surface thin layer and hard materials
     (titanium carbide, titanium nitride
And alumina), in order to improve the cutting performance;
(3) time is shorter in the edge of the sword;
(4) because of the indexable insert is standardized and centralized production, blade geometry parameters is easy to
     be consistent, stable chip control.

Indexable tool application range is very wide, including all kinds of turning tool, boring tool, milling cutter, broach outer
surface, large diameter deep hole drilling and nesting drill, etc.
